Lithium battery automatic inspection machine

Lithium battery automatic inspection machine has the advantages of simple operation, fast speed, high detection accuracy, stability and reliability. This product can eliminate various dimensions such as surface thickness, flatness, inner and outer diameters of the lithium battery cover, as well as various appearance defects such as scratches and bumps.

Advantages of equipment testing

(1) Standardization and dataization of test results, which solves the impact of human factors such as subjective will, emotion, and visual fatigue on test results, with high test accuracy and stable and reliable test results;

(2) The detection speed is 600pcs/min, which improves the production efficiency and can replace 9 employees for detection, saving labor costs;

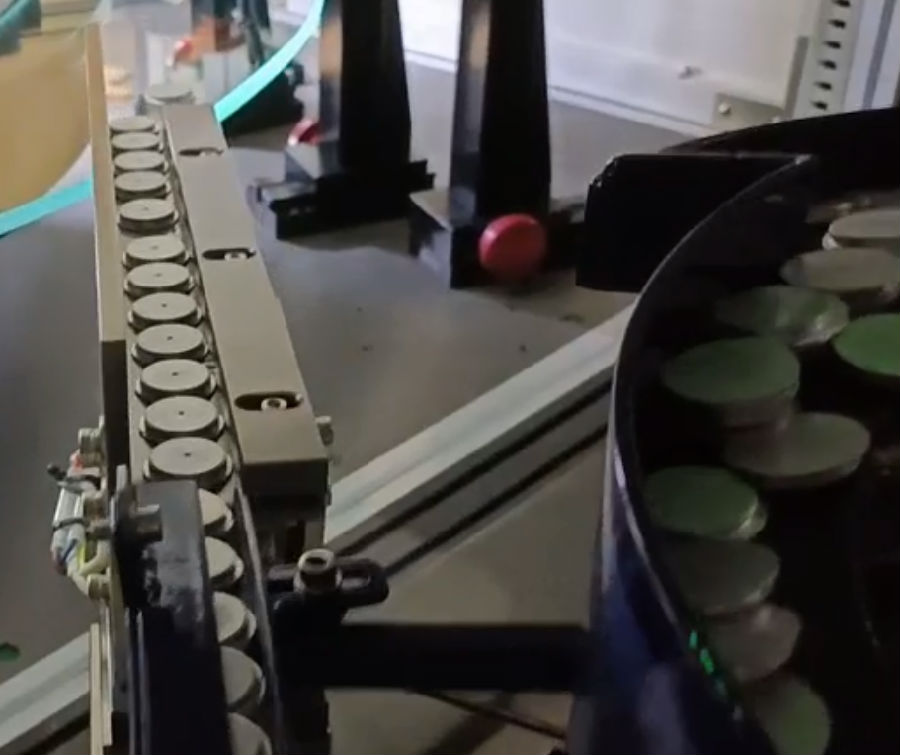

(3) According to the size of the lithium battery cover of the customer, the feeding vibrating plate and guide rail matching the product size can be designed;

(4) The product can be monitored in real time and the data can be stored, which is convenient for quality analysis and repeated training.

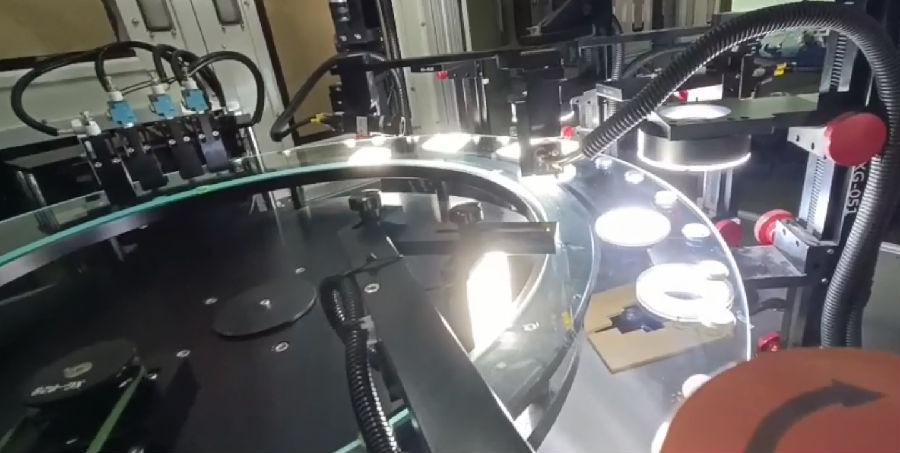

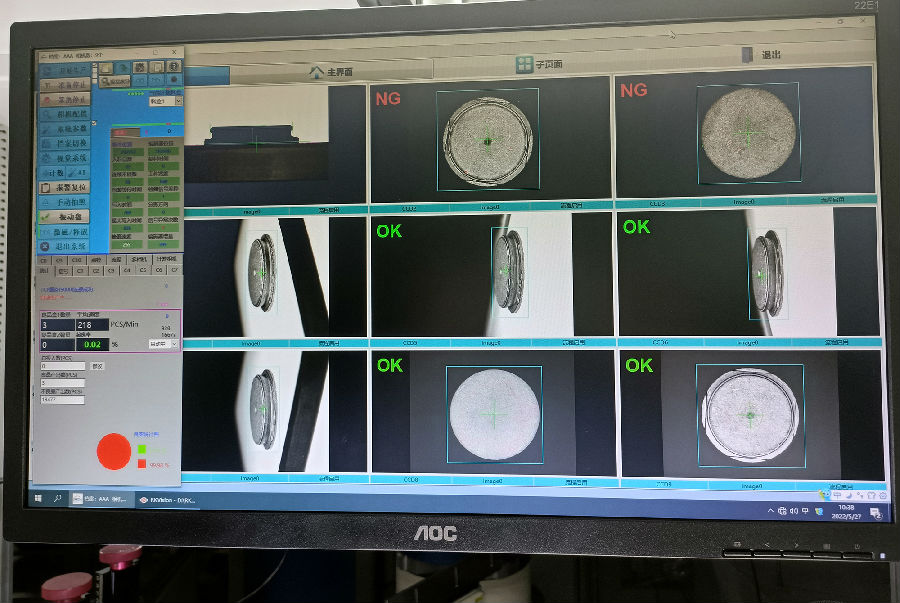

"Lithium battery automatic inspection machine" is used for defect detection in the new energy industry. The equipment is equipped with 9 high-pixel industrial cameras. The system will send stable and clear pictures of the product to the image processing system, and then analyze the feature information of various defects or sizes of the lithium battery cover by identifying image features. At the same time, the light source system can be based on the image. Carry out brightness monitoring, if there is any abnormal product, the system will give an abnormal signal, output an OK or NG signal, and the blowing valve will automatically classify the product into the corresponding unloading box.
