Auto parts testing
Auto welding nut detection The main products are auto welding nuts, but also can detect screws, nuts, hardware, fasteners, plastic parts, etc.
Automobile welding nut detection is mainly divided into the following parts:

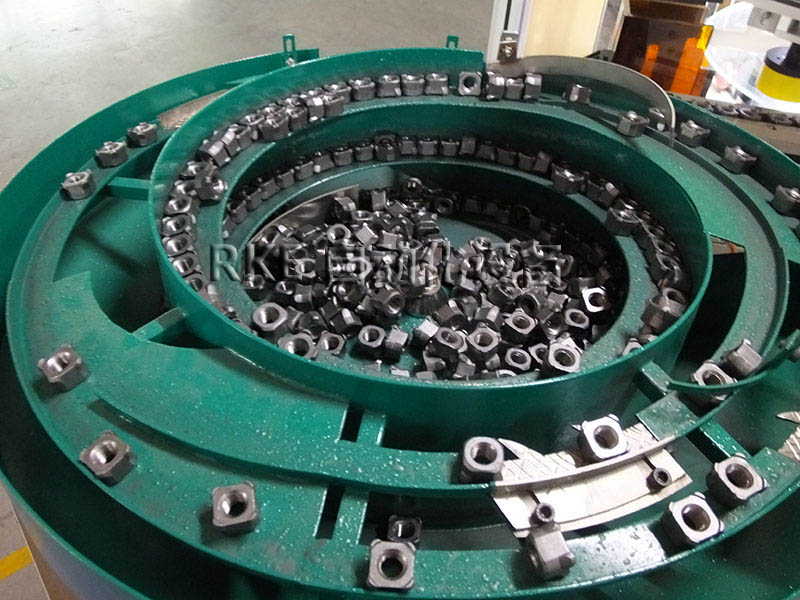

First, feeding: pour the product into the vibration plate, through the vibration wave generated by the vibration plate, so that the product orderly arrangement into the flat feed, to achieve the feeding function.

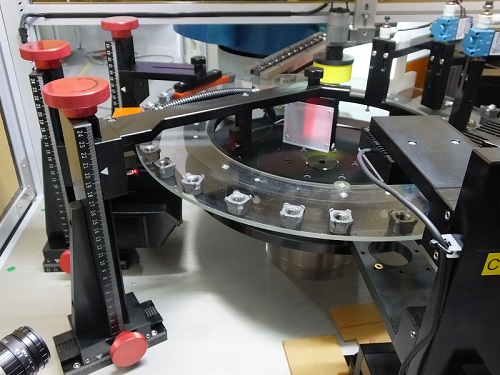

Second, motion system: this part is mainly composed of motor, spindle, glass disk and some other accessories, mainly in order to achieve the smooth movement of the central system function.
Third, visual detection: mainly composed of cameras and light sources, respectively detect the various surfaces of the product, such as the bottom surface of the welding nut, side size, top surface and size, whether there are screws and other defects, etc.
Fourth, analysis system: wait until the camera imaging, through the analysis of the host system, can determine the attributes of the test product, qualified, unqualified, to be inspected these three kinds of products.
Fifth, discharge system: after the software determines the attributes of the product, through the control system, discharge inspection system in accordance with the attributes indicated by the software, the product is classified as good, bad, to be inspected, etc.
Sixth, electrical control system: through the PLC equipped with electrical control components, can complete the control of the whole set of equipment.
