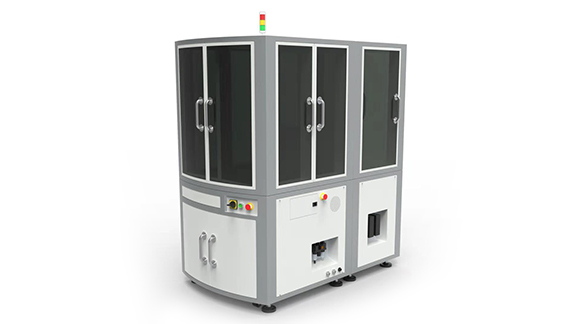

Fastener Vision Inspection Camera.

Screw appearance measurement equipment

Measurement accuracy: ±0.01mm

Detection speed: 300-1200pcs/min

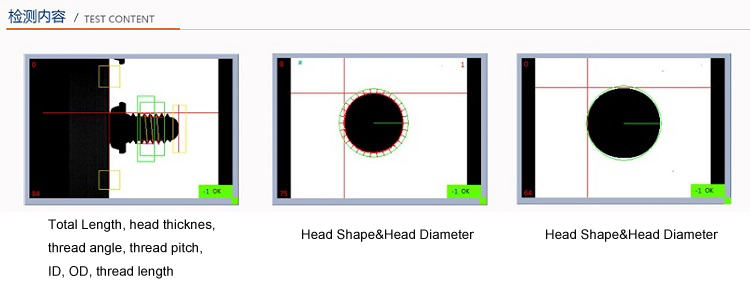

Test items: total length of screws, multi-section length, head thickness, tooth Angle, oblique teeth, rotten teeth, tooth distance, tooth height, tooth inner diameter, tooth outer diameter, thread length, head ellipse, head diameter, head crack, head electroplating, cross plugging, etc.

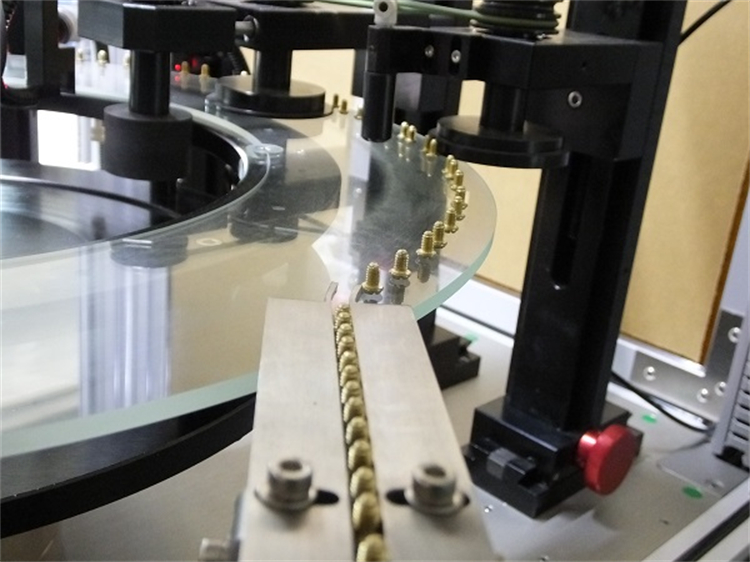

1.Equipment function: product automatic feeding -- "automatic detection --" automatic sorting -- "automatic feeding

2.Air pressure: 5kg/cm

3.Size detection accuracy: ±0.01mm

4.Detection speed: 300-1200pcs/min

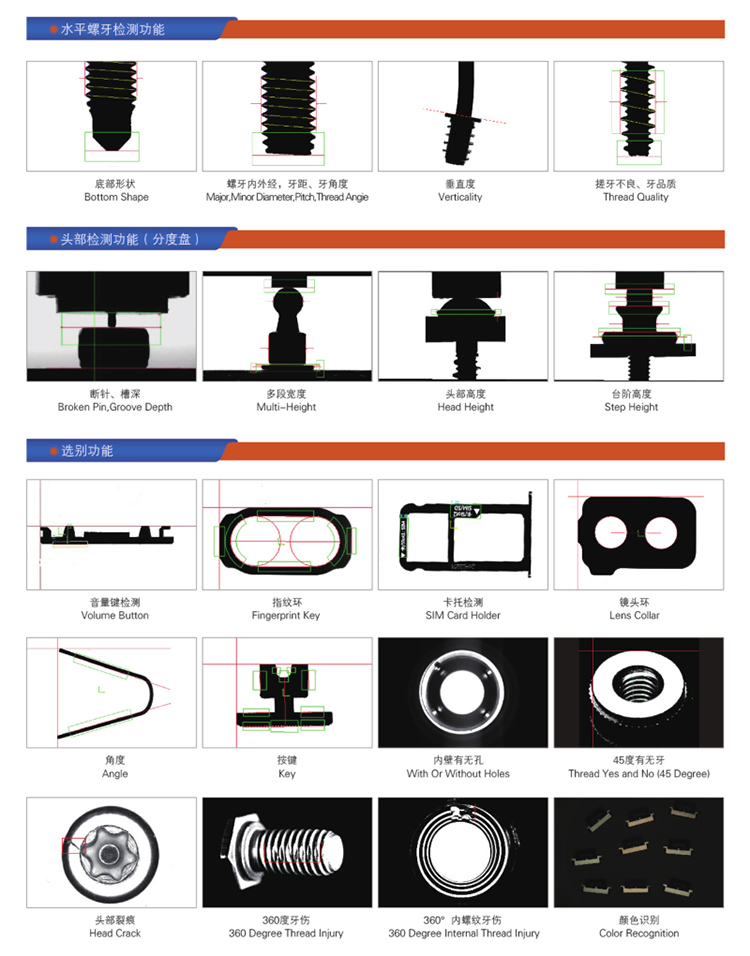

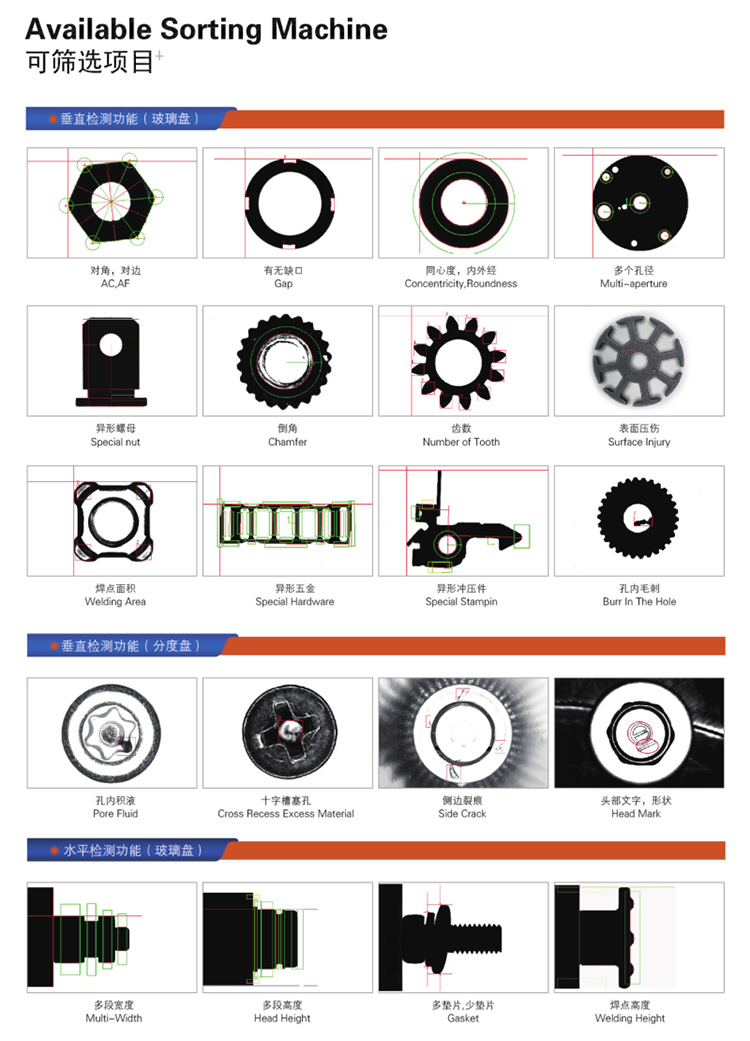

5.Detection items: total length of screws, multi-section length, head thickness, tooth Angle, oblique teeth, rotten teeth, tooth distance, tooth height, tooth inner diameter, tooth outer diameter, thread length, head ellipse, head diameter, head crack, head electroplating, cross plugging, etc.

6.Power supply voltage: 220V±10%, 50Hz±5%

Detection range:

Head thickness: Φ2mm-Φ25mm

Head outer diameter: Φ5mm-Φ25mm

Total length: 5mm-90mm

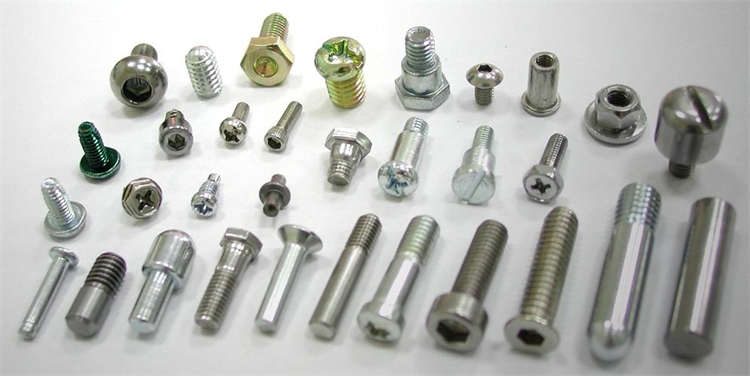

Objects suitable for inspection:

Screws, nuts, screws, gaskets, hardware widgets, wire frames, hardware stamping parts, hardware special-shaped parts, springs, spring gaskets and so on
