O-ring Seal Automatic Vision Inspection And Rejection System

Sealing ring O-ring visual inspection equipment

Inspection items of sealing ring O-ring visual inspection equipment: outer diameter, inner diameter, line diameter, lack of material, flow mark, impurities, bubbles, aging glue, fracture, raw edge and other surface defects.

O-ring sealing rings are widely used in various industries, such as mobile phone industry, automobile industry, medical industry, O-ring sealing rings using manual detection time consuming, and the cost is very high, it is easy to miss and false detection.

O-ring sealing ring defect detection equipment helps the production of rubber industry, can be more accurate, efficient, low cost to complete the detection of O-ring sealing ring.

First, the detection principle of O-ring sealing ring visual detection equipment

Products to be inspected are sent to the rapidly rotating platform through the feeding mechanism and discharging mechanism in turn. When a product passes the detection station, the high-speed camera takes photos of the product online and in real time. The image processing and analysis function module of the system compares the obtained image with the image of the normal product. Because the defective product image is always different from the normal product image in color or shape, and according to the defect feature database which collects the image features of all kinds of defects in advance, the system can accurately find out all kinds of defects of the product and carry out classification and sorting processing on the product.

Two, the main detection range of sealing ring O-ring visual detection equipment:

Deformation, lack of material, raw edge, raw material, dirt, bad drawing, size and other aspects of the detection.

Three, sealing ring O-ring visual inspection equipment inspection items:

Outer diameter, inner diameter, linear diameter (or thickness), lack of material, flow marks, impurities, bubbles, aging glue, fracture, raw edge and other surface defects.

Four, sealing ring O-ring visual detection equipment detection object:

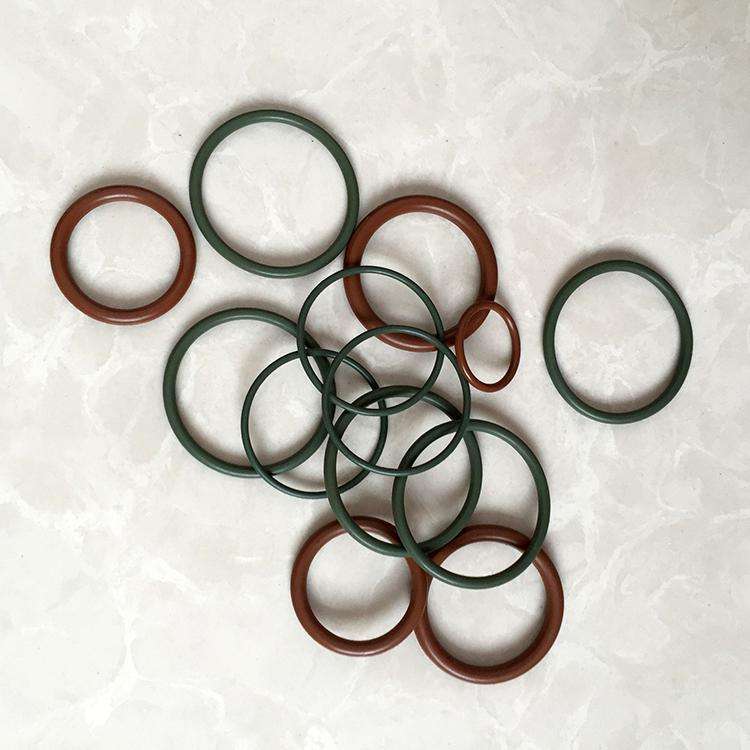

O-ring, rectangular ring, oil seal and other rubber products, and similar shape of other materials.

Five, sealing ring O-ring visual detection equipment role:

Reduce labor and management costs, improve production efficiency, reduce production costs, improve product quality, enhance corporate image.

Six, sealing ring O-ring visual inspection equipment application industry:

Plastic, hardware, 3C, automobile, electronics, food and other industries
