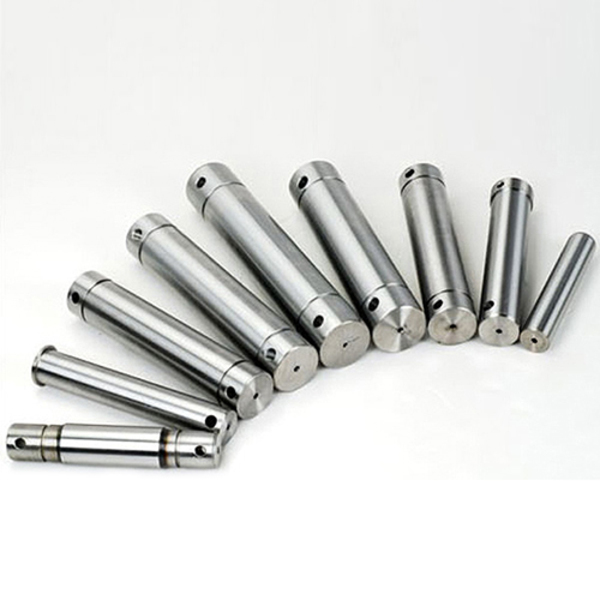

The quality inspection of pin shaft products is mainly completed by visual inspection equipment.
Pin test - Size and appearance test
The quality inspection of pin shaft products is mainly completed by visual inspection equipment. Visual inspection equipment in general is to replace artificial product inspection naked eye inspection, to achieve product inspection machine vision intelligent operation, the use of special software to detect product defects, machine vision detection can work 24 hours a day, so in many aspects, machine vision is superior to human eye detection in all aspects.
Pin size detection
The tolerance range of the size of the pin is generally only 0.02MM. If the detection accuracy of the pin sieve machine is poor, there will be a large number of false detection and leakage detection, leading to the loss of the significance of the pin sieve machine, the user wastes money. The detection accuracy of the pin sieve machine can reach 0.0005MM, which greatly reduces the false detection rate and improves the detection efficiency of the equipment. The same equipment from the detection speed and efficiency analysis, can be compared with two other manufacturers on the market.
In addition, according to the needs of users, the design of multiple discharge ports, can be a variety of size tolerance band pin out one by one, further reducing the user's labor costs.
The detection speed is faster, more than 500 pieces per minute, and the detection accuracy is controlled within 0.0005MM (0.5 micron).
Appearance detection is used more in the field of machine vision detection. Through supporting visual detection equipment, the detection efficiency is greatly improved, and the detection yield is also improved a lot compared with the previous manual, which not only brings standardized operation steps for enterprises, but also saves a lot of labor costs for enterprises.
CCD vision detection system is to use industrial cameras instead of human eyes to complete the identification, measurement, positioning and other functions, widely used in electronic connector manufacturing industry, pin products manufacturing industry, magnetic core, capacitance, inductance detection.
CCD visual detection system features:
1, the detection results are more accurate and reliable, pin type visual detection equipment, CCD visual detection will not be affected by the operator's fatigue, responsibility and experience and other factors;
2, pin shaft product visual detection function faster detection products, especially when the detection of high-speed moving objects, such as printing and packaging line visual positioning system;
Automatic detection machine can undertake several people's tasks, pin type optical screening machine factory, low cost, can work continuously, so can greatly improve the production efficiency.
