All kinds of spring assembly, spring size detection, parts assembly, detection of spring assembly, a
Spring size inspection equipment optical screening machine

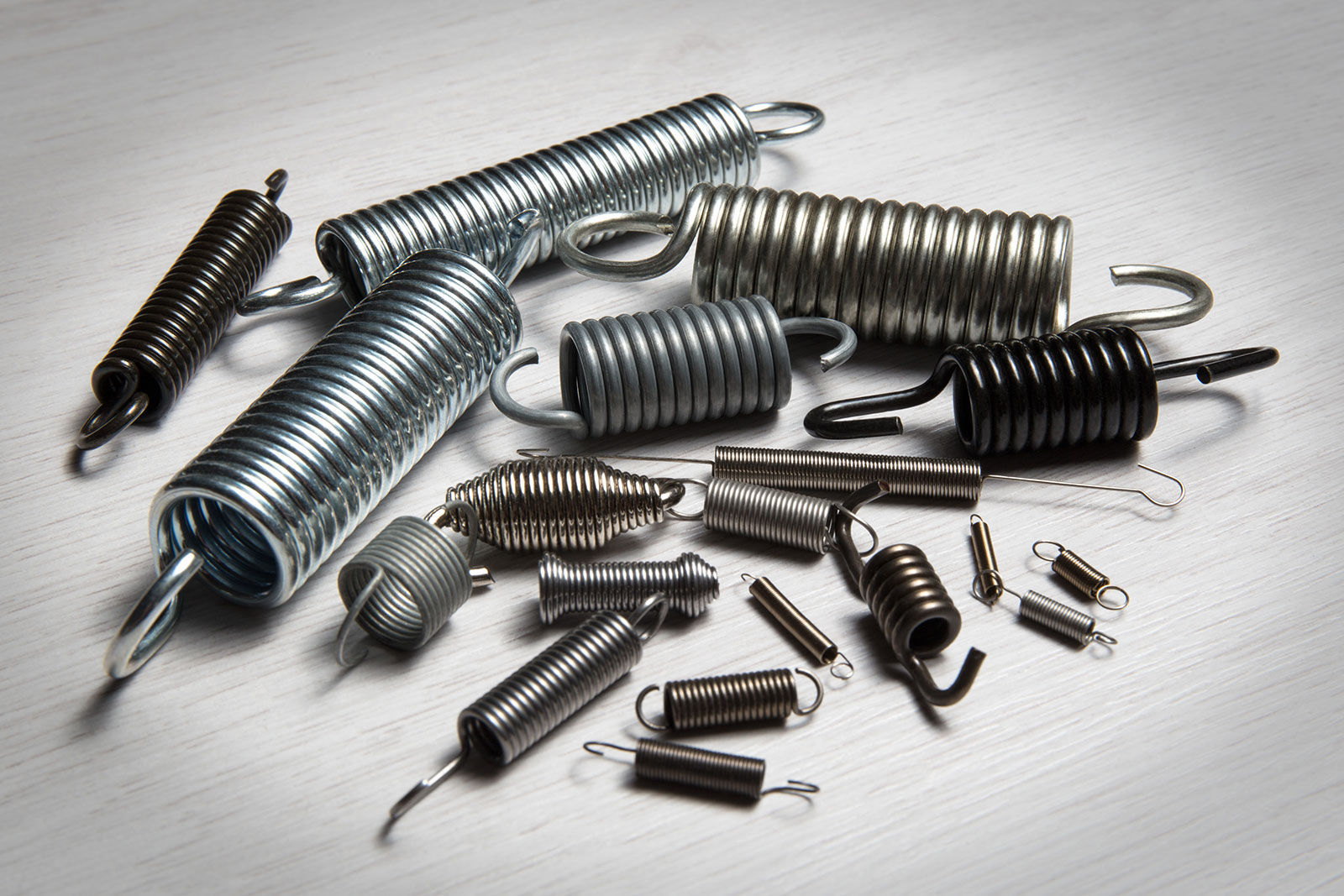

Test product: torsion spring, tensile spring, compression spring and other springs.
Digital CCD: German high resolution camera
Computer host: Industrial computer
Scope of application: all kinds of spring assembly, spring size detection, parts assembly, detection of spring assembly, automotive spring pressure detection.
Detection items: inner diameter of spring, outer diameter of spring, length of spring, side height, Angle of spring grinding surface, Angle of spring Angle, concentricity, roundness of spring grinding surface, etc.
Spring is too common in our life, its application is very common and diverse, such as: car, train car under the buffer spring, coupling in the vibration absorption spring, etc.; Valve spring in internal combustion engine, control spring in clutch; The spring in the dynamometer and spring balance; Usually used lighter, ballpoint pen are useful to the spring; Pliers, the pen in the spring; Household door locks, spring mattresses, etc. It can be said that spring is ubiquitous in our daily life, and it is widely used in industrial manufacturing and mechanical equipment. There are so many applications of spring, then, its quality control is very important, with the development of science and technology and the popularity of machine vision, today's spring detection mostly uses special machine vision spring detection equipment to screen and detect.
Spring has a large and small, there are a variety of shapes, such as according to the shape to divide, spring can be divided into dish spring, ring spring, spiral spring, plate spring, truncated conical vortex coil spring and torsion bar spring. These different shapes of the spring, can be used to detect the spring size detection equipment, spring size detection, CCD detection machine, spring size detection machine for size detection and defect detection.
Spring size detection machine, also known as spring size detection equipment, spring size detection optical screening machine.
A.Introduction of spring size detection equipment:
Spring size detection equipment is mainly used to replace manual size detection of various types of spring, precision detection, can automatically complete the detection, quality discrimination work, improve the detection accuracy and detection speed, and greatly improve the quality of detection, is the ideal spring size detection equipment.
The spring size detection equipment is equipped with automatic assembly function. CCD image control system is used as the main control unit, and the displacement and vision sensing technology are used to automatically complete the detection process according to the spring parameters of different performance and specifications. Measurement, display and final judgment results, fully ensure the output and quality.
B.The working principle of the spring size detection equipment

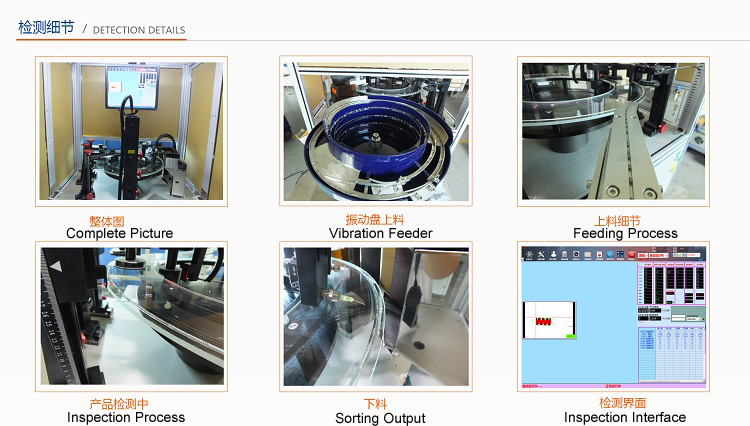

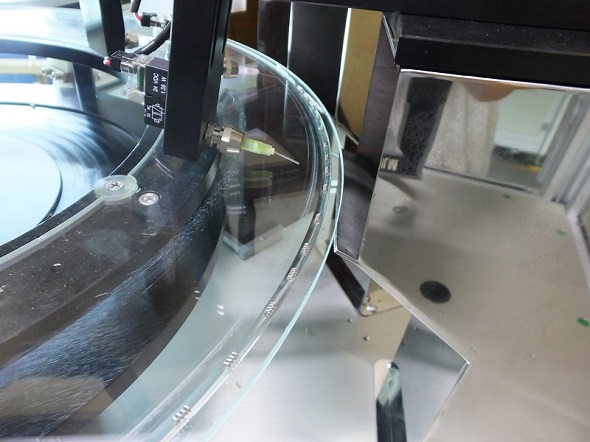

The product is transferred to the glass disk by vibrating disk, aluminum disk or transmission belt, and the spring is detected by using the high light transmittance of the glass and the optical hardware facilities and software to achieve the detection effect.
C.Spring size detection equipment can screen objects
Hardware spring, stainless steel compression spring, galvanized pressure lock spring, small spring, precision spring, cylindrical coil spring, fine spring, compression spring, torsion spring, stretching spring, coil spring, clockwork spring, coiled spring, etc. It can be customized according to the size of the object.
D.The spring size detection equipment technical characteristics:
1.the detection and assembly process is stable and accurate, no vibration, impact and other adverse phenomena.
2.high science and technology, advanced technology, high precision, good stability, reliable quality, easy to operate.
3.using Germany CCD high resolution camera, reliable quality and good performance.
4.data show, automatic discrimination of "qualified" or "unqualified".
5.can be equipped with automatic conveying device, automatic assembly device, complete the automatic feed in and out.
E.Test items of spring size testing equipment
Spring size, spring length, spring inner diameter, spring outer diameter, side height, spring Angle Angle, spring grinding Angle, concentricity spring grinding surface roundness, etc.
