CCD visual inspection equipment

Detection solutions for gaskets

1. Mainly test the height of the product, outside diameter, whether there are teeth and appearance.

2. Detection speed: 300-1200pcs/min.

3. detection accuracy: detection accuracy up to ±0.02mm.

Gasket can be seen everywhere in industrial manufacturing and people's life, used at any time, so, and gasket are mass production, so how to pass its quality? Next, to share the gasket detection solution!

CCD visual inspection equipment-gasket inspection solution

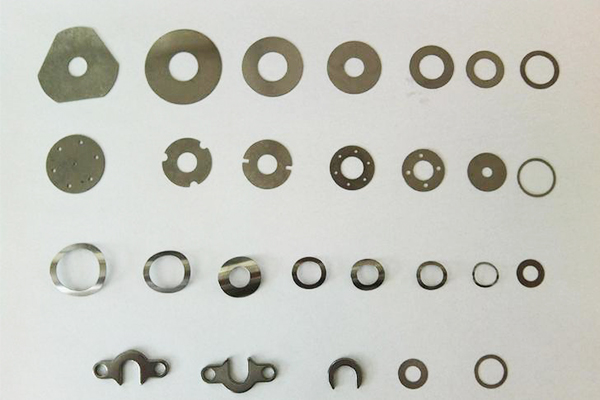

1. The type of gasket

There are many kinds of gaskets, according to the structure of the subject material is divided into non-metal, semi-metal and metal gaskets three categories.

(1)Non-metallic gasket: non-metallic gasket soft texture, corrosion resistance, cheap price, but poor temperature and pressure resistance performance. It is used for flange sealing of medium and low pressure vessels or pipelines at normal temperature and medium temperature.

Non-metallic gaskets include rubber gaskets, asbestos gaskets, asbestos rubber gaskets, flexible graphite gaskets and polytetrafluoroethylene gaskets.

(2)semi-metallic gasket (also known as metal-non-metallic composite gasket, or metal composite gasket) : non-metallic materials although has good softness, compressibility and low bolt load capacity advantages. But its main disadvantage is not high strength, poor resilience, not suitable for high pressure and high temperature occasions. Therefore, combined with the characteristics of high strength, good resilience and high temperature of metal materials, the formation of the two combined structure of the gasket, that is, half metal gasket.

Semi-metal gaskets include metal coated gaskets, metal wound gaskets, metal corrugated composite gaskets, metal tooth shaped composite gaskets, etc.

(3)Metal gasket: in high temperature and high pressure and load cycle frequent harsh operating conditions, a variety of metal materials are still the first choice for sealing gasket materials, commonly used materials are copper, aluminum, low carbon steel, stainless steel, chrome-nickel alloy steel, titanium monel alloy, etc. In order to reduce bolt load and ensure compact structure, in addition to the metal flat washer with narrow width as far as possible, various ring washer structures with line contact characteristics are preferred.

Metal gaskets include: flat metal gaskets, corrugated metal gaskets, toothed metal gaskets, metal ring gaskets, metal lens gaskets, metal O-ring gaskets and so on.

2. Detection scope

Ptfe gasket, pvc gasket, silicone thermal gasket, metal winding gasket, spring gasket, fire gasket, ceramic fiber gasket and so on.

3.Gasket detection, why use CCD visual detection equipment?

(1)Good objectivity

CCD visual detection is more accurate and reliable, ccd visual detection will not be affected by the operator's fatigue, responsibility and experience and other factors, the traditional human eye detection has a fatal defect, that is, the subjectivity brought by emotions, the detection results will change due to the mood of the workers, and the machine does not have anger, sorrow, joy, the detection results are naturally accurate and reliable.

(2)High repeatability

CCD visual inspection equipment will not be tired, can be 24 hours continuous work. In contrast, the human eye is subtly different every time it detects a product, even if the product is exactly the same.

(3)The detection speed is fast

CCD visual inspection equipment can detect products more quickly, especially when detecting high-speed moving objects, such as moving products on the production line.

(4)Low cost, high efficiency

CCD visual detection equipment can undertake the task of many people, and the machine does not need to stop, will not be sick, can work continuously, so it can greatly improve the production efficiency.
